• Pickup box
• Transfer case, with floor-mounted shifter (Included with 4WD models only.)
• Four wheel drive
• Alternator, 150 amps
• Frame, fully-boxed, hydroformed front section
• Steering, Electric Power Steering (EPS) assist, rack-and-pinion
• Brakes, 4-wheel disc with DURALIFE rotors, 4-wheel antilock
• Capless Fuel Fill
• Exhaust, aluminized stainless-steel muffler and tailpipe

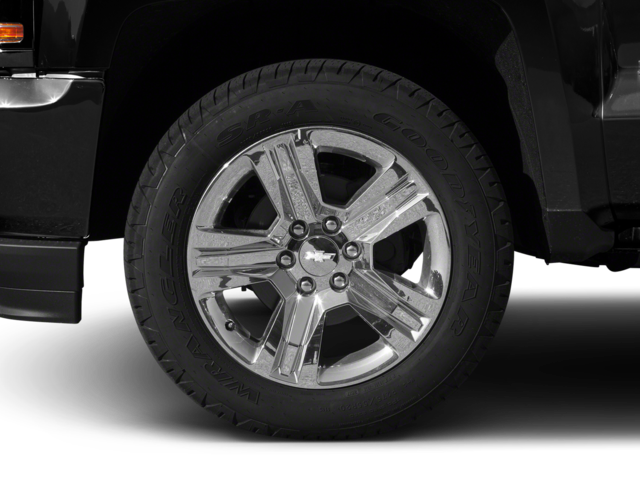

• Wheels, 20" x 9" (50.8 cm x 22.9 cm) chrome clad aluminum
• Tires, P275/55R20 all-season, blackwall
• Wheel, full-size spare, 17" (43.2 cm) steel
• Tire, spare P265/70R17 all-season, blackwall
• Tire carrier lock, keyed cylinder lock that utilizes same key as ignition and door

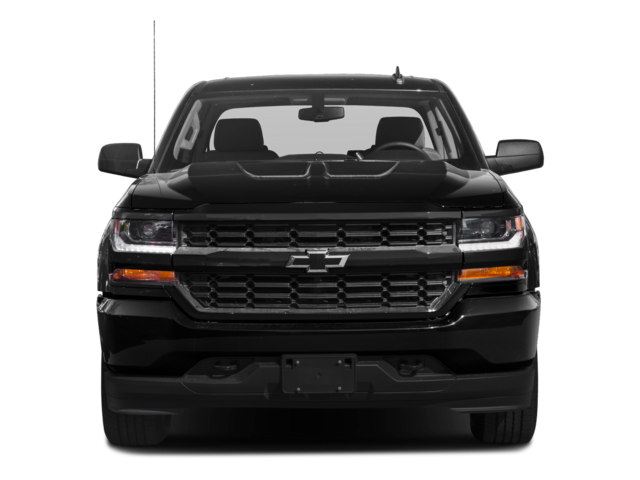

• Bumper, front body-color

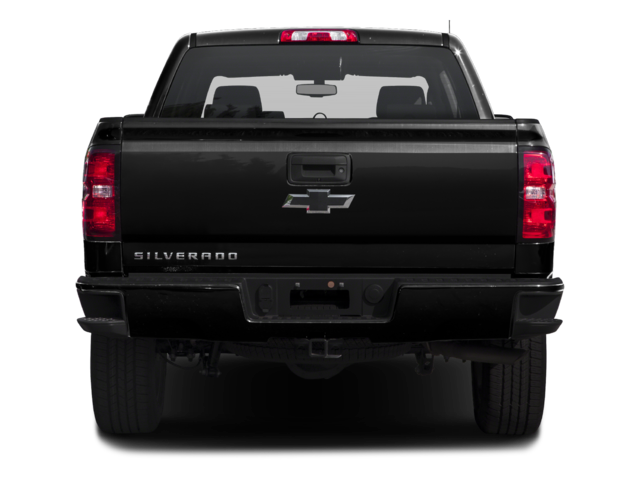

• Bumper, rear body-color, with CornerSteps
• Recovery hooks, front, frame-mounted, black
• Lamps, cargo area, cab mounted with switch on center switch bank
• CornerStep, rear bumper
• Grille surround, body color
• Active Aero Shutters, front
• Headlamps, high intensity discharge (HID) projector-beam with LED signature DRL
• Headlamp bezels, body-color
• Mirrors, outside heated power-adjustable (includes driver's side spotter mirror) (Black.)
• Glass, deep-tinted
• Door handles, Black

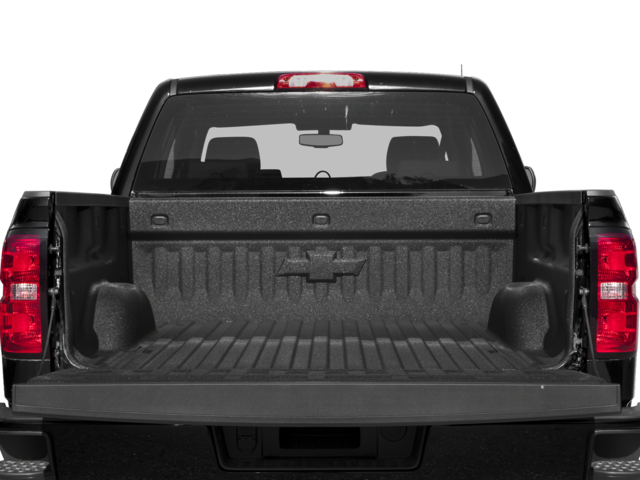

• Tailgate and bed rail protection cap, top
• Tailgate, locking utilizes same key as ignition and door (Not available with (AQQ) Remote Keyless Entry.) (Not available with (AQQ) Remote Keyless Entry. Not available with (ZW9) pickup box delete.)

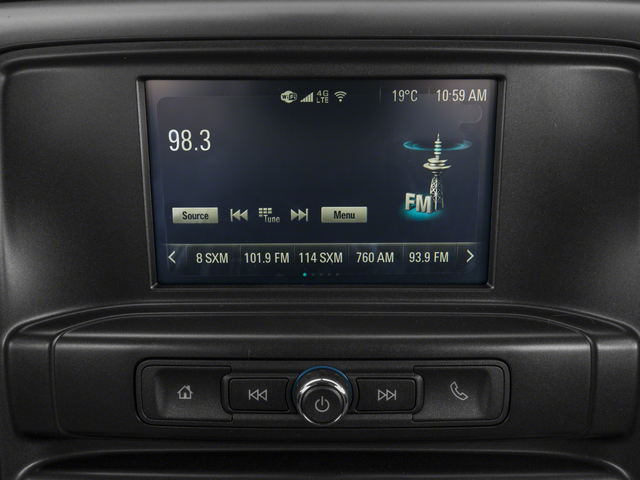

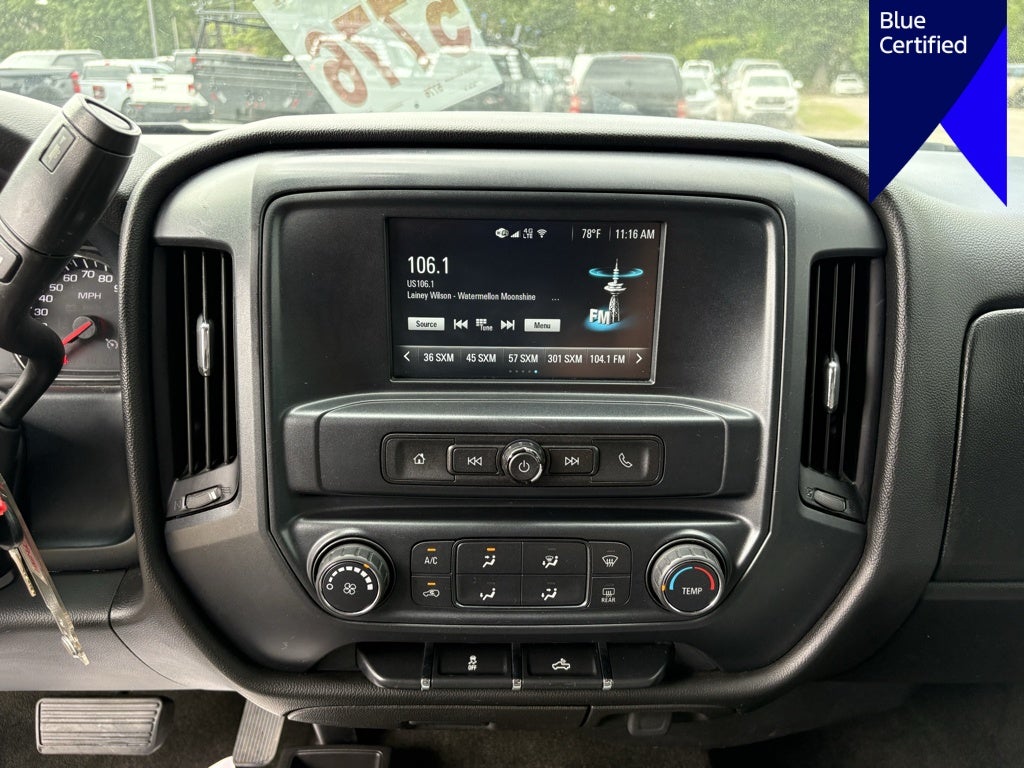

• Audio system, Chevrolet MyLink Radio with 7" diagonal color touch-screen, AM/FM stereo with seek-and-scan and digital clock, includes Bluetooth® streaming audio for music and select phones
• SiriusXM Satellite Radio, delete
• 6-speaker audio system
• Bluetooth® for phone, personal cell phone connectivity to vehicle audio system

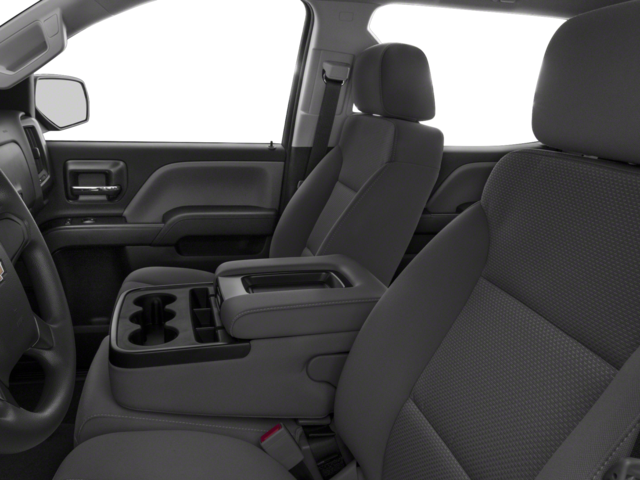

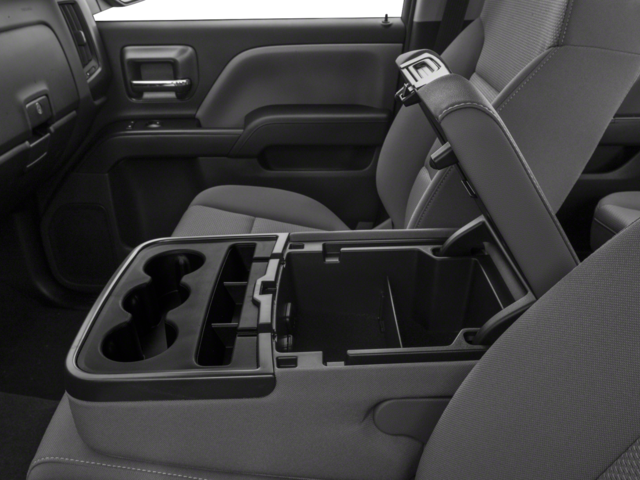

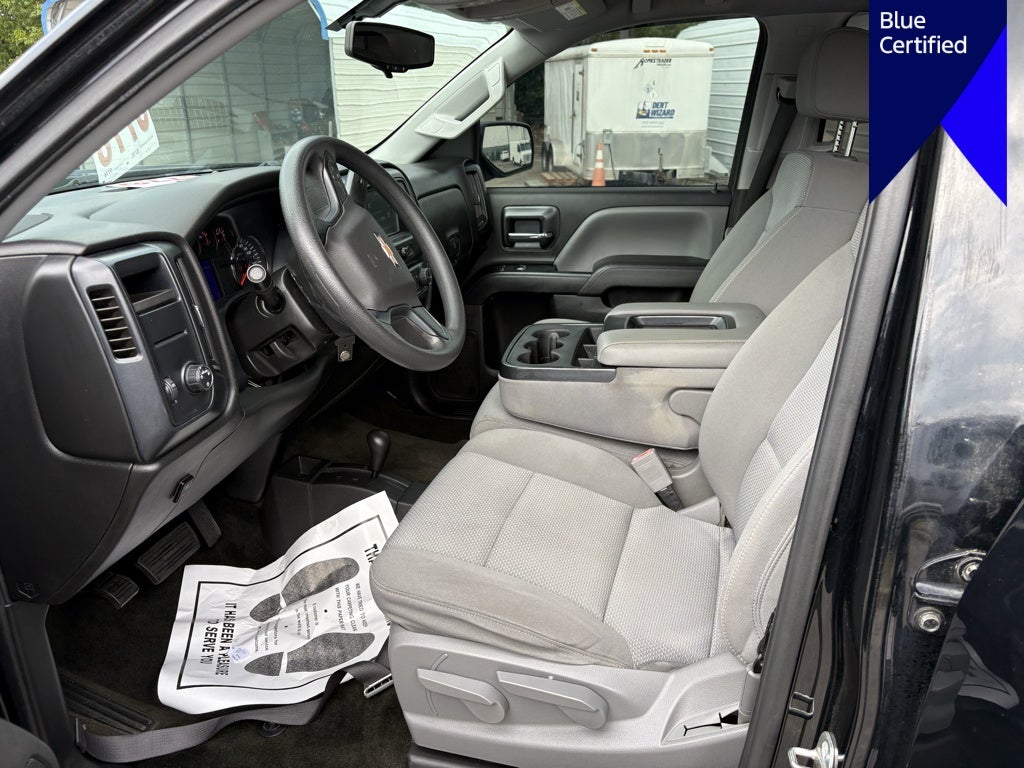

• Seats, front 40/20/40 split-bench, 3-passenger, driver and front passenger manual recline with outboard head restraints and center fold-down armrest with storage. Vinyl has fixed lumbar and cloth has manual adjustable driver lumbar.

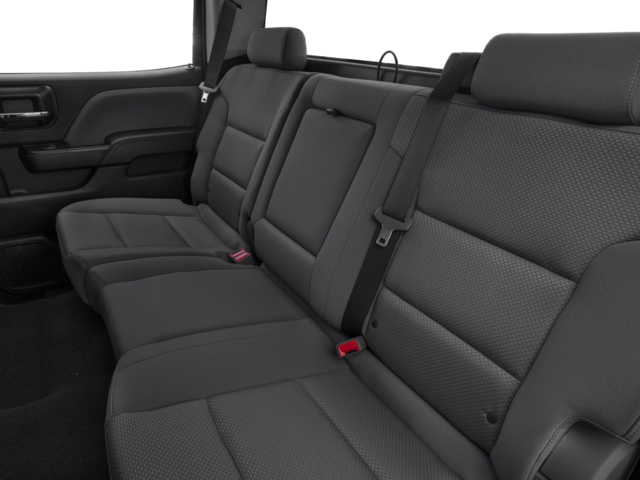

• Seat, rear 60/40 folding bench (folds up), 3-passenger (includes child seat top tether anchor) (Requires Crew Cab model.)
• Floor covering, Graphite-colored rubberized-vinyl, no floor mats included

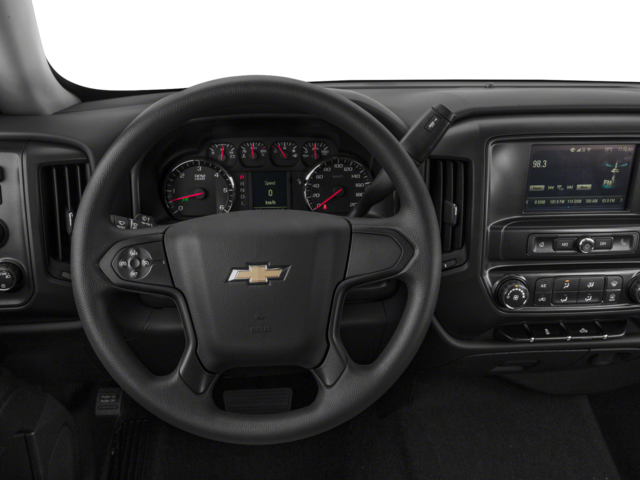

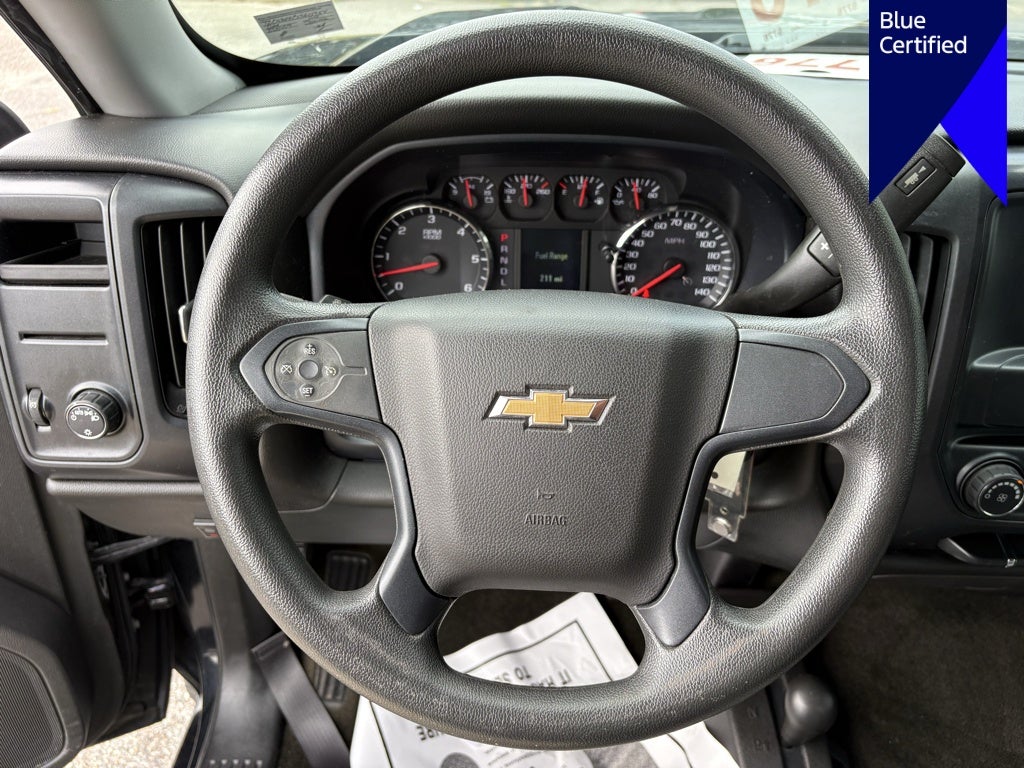

• Steering column, Tilt-Wheel, manual with theft-deterrent locking feature

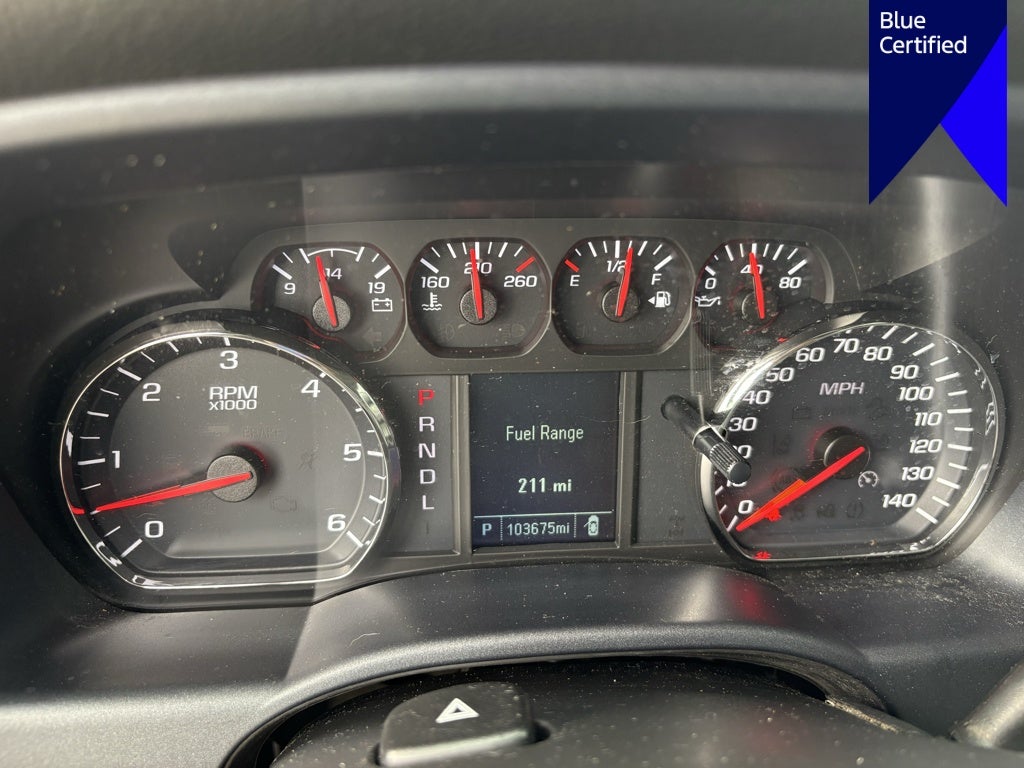

• Driver Information Center, 3.5-inch diagonal monochromatic display provides warning messages and basic vehicle information

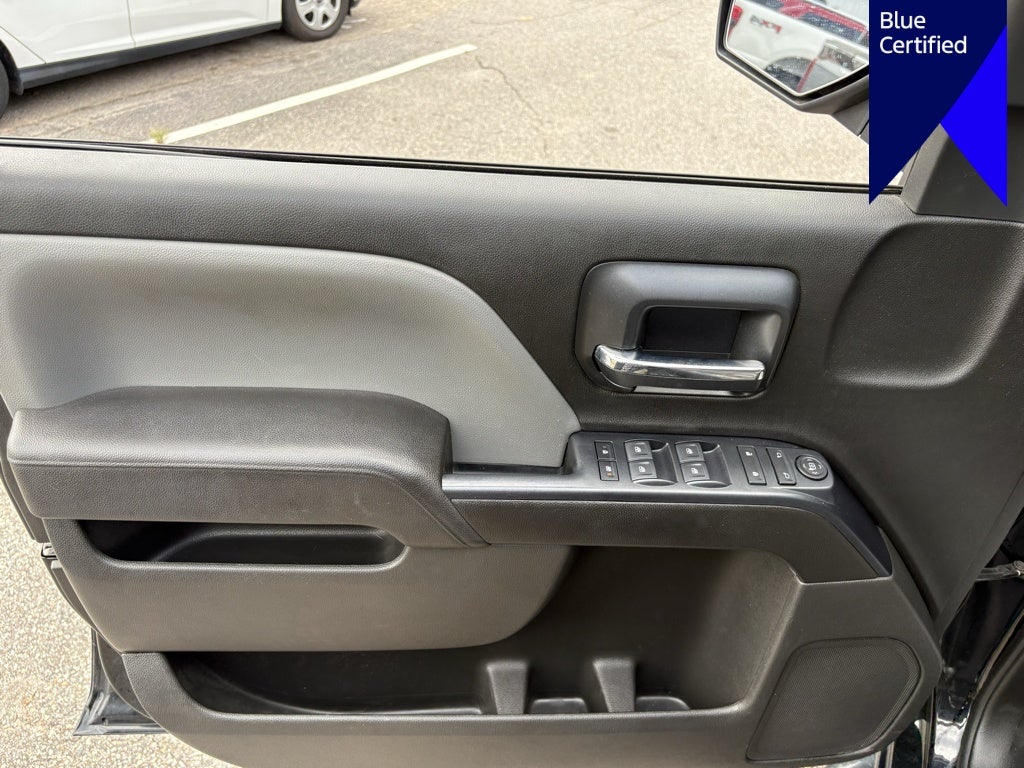

• Windows, power front and rear with driver express up and down and express down on all other windows
• Door locks, power
• Cruise control, electronic with set and resume speed, steering wheel-mounted
• Air conditioning, single-zone
• Assist handle, front passenger on A-pillar

• StabiliTrak, stability control system with Proactive Roll Avoidance and traction control includes electronic trailer sway control and hill start assist
• Daytime Running Lamps with automatic exterior lamp control
• Airbags, dual-stage frontal airbags for driver and front outboard passenger; Seat-mounted side-impact airbags for driver and front outboard passenger; Head-curtain airbags for front and rear outboard seating positions; Includes front outboard Passenger Sensing System for frontal outboard passenger airbag (Always use safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Rear Vision Camera
• Teen Driver mode a configurable feature that lets you activate customizable vehicle settings associated with a key fob, to encourage safe driving behavior. It can limit certain vehicle features, and it prevents certain safety systems from being turned off. An in-vehicle report gives you information on your teen's driving habits and helps you to continue to coach your new driver
• Tire Pressure Monitoring System with Tire Fill Alert (does not apply to spare tire)

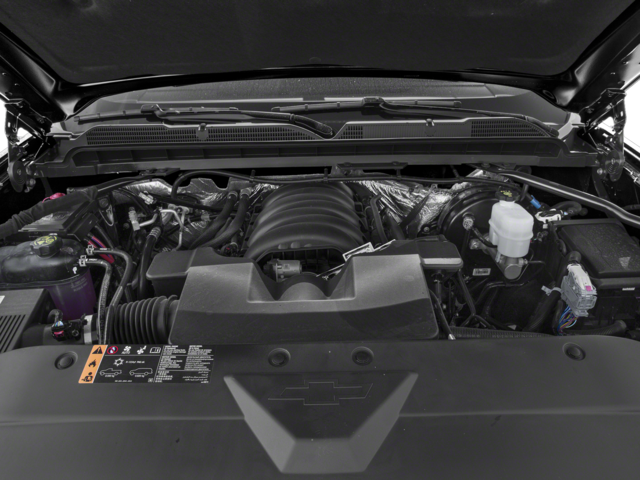

ENGINE, 5.3L ECOTEC3 V8 WITH ACTIVE FUEL MANAGEMENT, DIRECT INJECTION AND VARIABLE VALVE TIMING

• includes aluminum block construction (355 hp [265 kW] @ 5600 rpm
• 383 lb-ft of torque [518 Nm] @ 4100 rpm; more than 300 lb-ft of torque from 2000 to 5600 rpm) (STD)

• Mileage
• Fuel Economy Est-Combined (MPG): 18
• EPA Fuel Economy Est - City (MPG): 16
• EPA Fuel Economy Est - Hwy (MPG): 22
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 720
• Maximum Alternator Capacity (amps): 150
• Cooling System
• Total Cooling System Capacity (qts): - TBD -
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 3950
• Gross Axle Wt Rating - Rear (lbs): 3950
• Curb Weight - Front (lbs): 3272
• Curb Weight - Rear (lbs): 2188
• Gross Vehicle Weight Rating Cap (lbs): 7200
• Gross Combined Wt Rating (lbs): 15000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 9100
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 910
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 6000
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 900
• Maximum Trailering Capacity (lbs): 9100
• Suspension
• Suspension Type - Front: Independent
• Suspension Type - Rear: 2-Stage Multi-Leaf
• Spring Capacity - Front (lbs): 3950
• Spring Capacity - Rear (lbs): 3950
• Axle Type - Front: Independent
• Axle Type - Rear: Semi-Floating
• Axle Capacity - Front (lbs): 3950
• Axle Capacity - Rear (lbs): 3950
• Axle Ratio (:1) - Front: 3.42
• Axle Ratio (:1) - Rear: 3.42
• Shock Absorber Diameter - Front (mm): 46
• Shock Absorber Diameter - Rear (mm): 35
• Stabilizer Bar Diameter - Front (in): 1.35
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.0 x 1.18
• Rear Brake Rotor Diam x Thickness (in): 13.6 x 0.79
• Tires
• Front Tire Order Code: QT0
• Rear Tire Order Code: QT0
• Spare Tire Order Code: RC4
• Front Tire Size: P275/55R20
• Rear Tire Size: P275/55R20
• Spare Tire Size: P265/70R17
• Front Tire Capacity (lbs): - TBD -
• Rear Tire Capacity (lbs): - TBD -
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: N/A
• Revolutions/Mile @ 45 mph - Rear: N/A
• Revolutions/Mile @ 45 mph - Spare: N/A
• Wheels
• Front Wheel Size (in): 20 x 9.0
• Rear Wheel Size (in): 20 x 9.0
• Spare Wheel Size (in): 17 x - TBD -
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Spare Wheel Material: Steel
• Steering
• Steering Type: Electric Rack & Pinion
• Steering Ratio (:1), On Center: 16.3
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 48.6
• Turning Diameter - Wall to Wall (ft): N/A
• Frame
• Frame Type: Hydroformed
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 26
• Fuel Tank Location: - TBD -
• Exterior Dimensions
• Wheelbase (in): 153.0
• Length, Overall w/o rear bumper (in): 239.57
• Width, Max w/o mirrors (in): 80.0
• Height, Overall (in): 73.80
• Overhang, Front (in): - TBD -
• Overhang, Rear w/o bumper (in): - TBD -
• Front Bumper to Back of Cab (in): 150.90
• Cab to Axle (in): 41.47
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): 34.1
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): 8.97
• Ground Clearance, Rear (in): 8.97
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 78.87
• Cargo Box Width @ Top, Rear (in): - TBD -
• Cargo Box Width @ Floor (in): 64.6
• Cargo Box Width @ Wheelhousings (in): 51.03
• Cargo Box (Area) Height (in): 21.10
• Tailgate Width (in): 62.2
• Cargo Volume (ft³): 61.0
• Ext'd Cab Cargo Volume (ft³): - TBD -
• Interior Dimensions
• Passenger Capacity: 6
• Front Head Room (in): 42.80
• Front Leg Room (in): 45.27
• Front Shoulder Room (in): 66.03
• Front Hip Room (in): 60.73
• Second Head Room (in): 40.50
• Second Leg Room (in): 40.93
• Second Shoulder Room (in): 65.73
• Second Hip Room (in): 60.27
• Summary

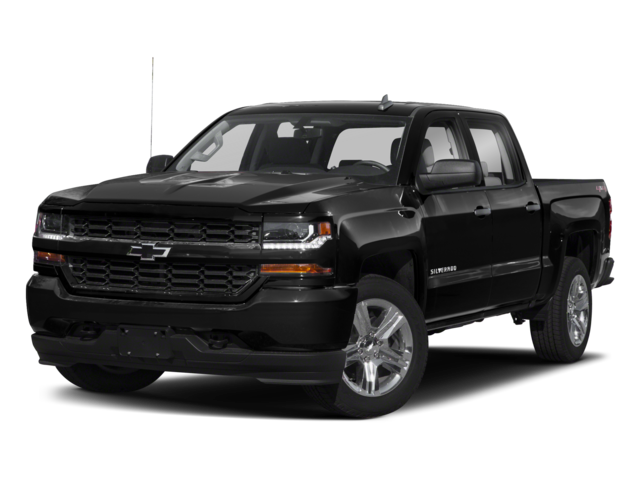

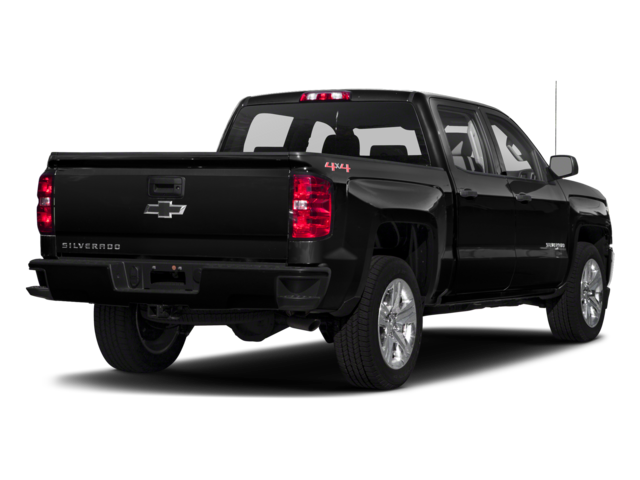

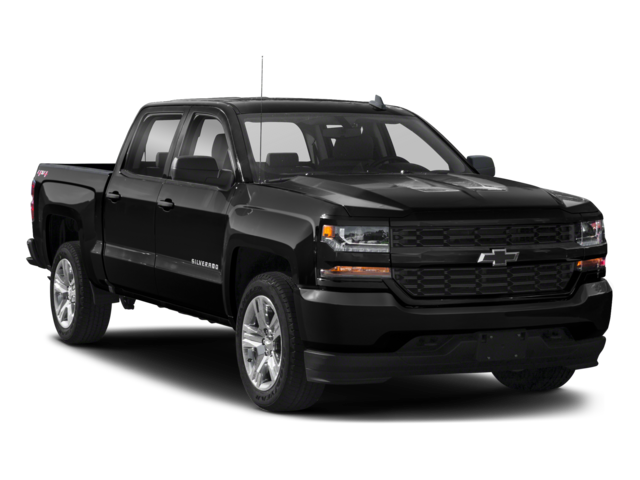

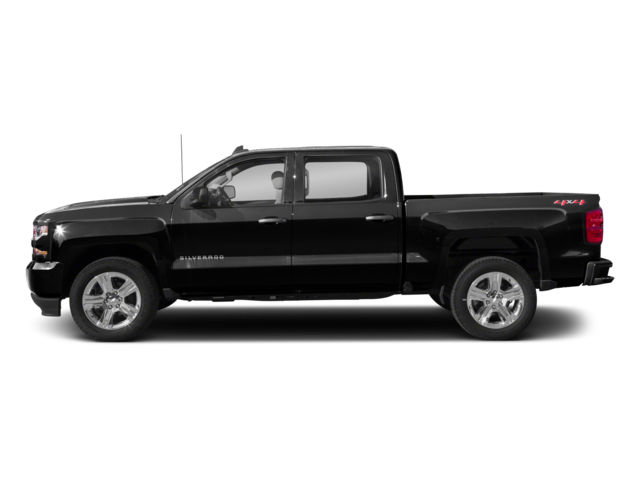

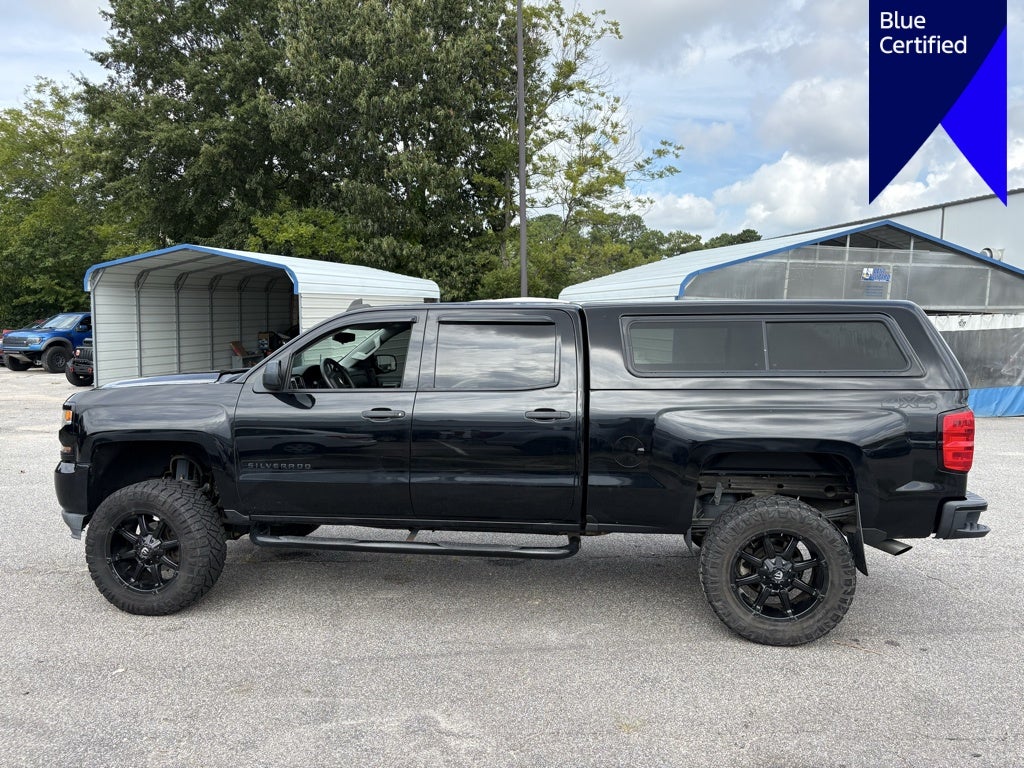

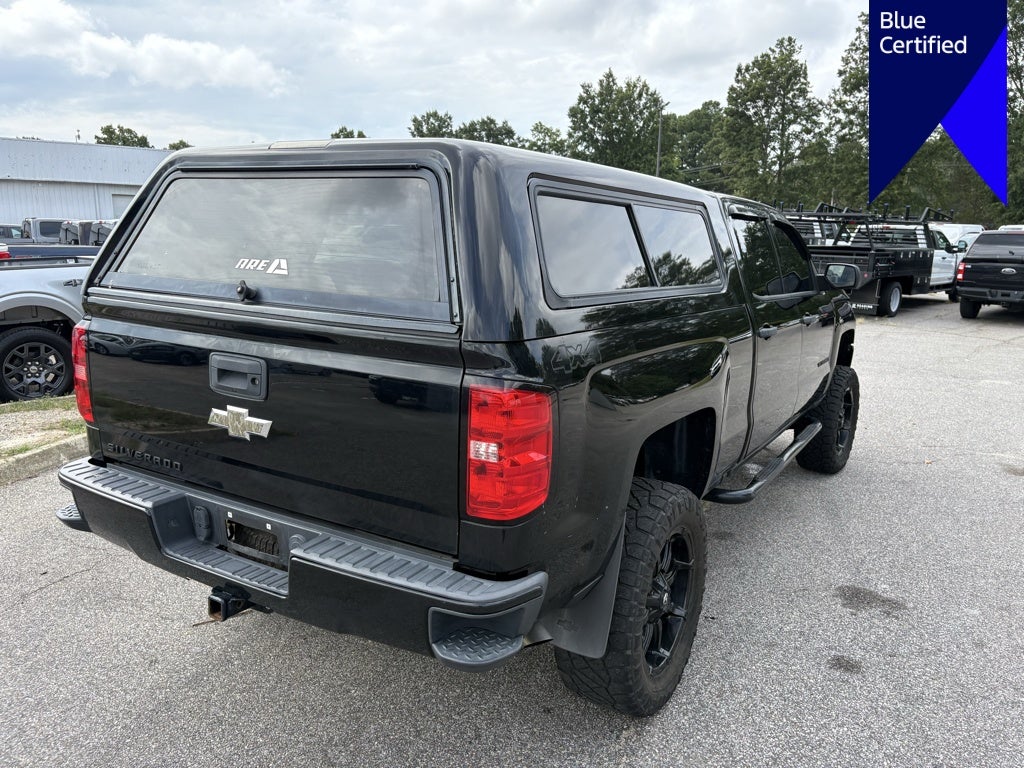

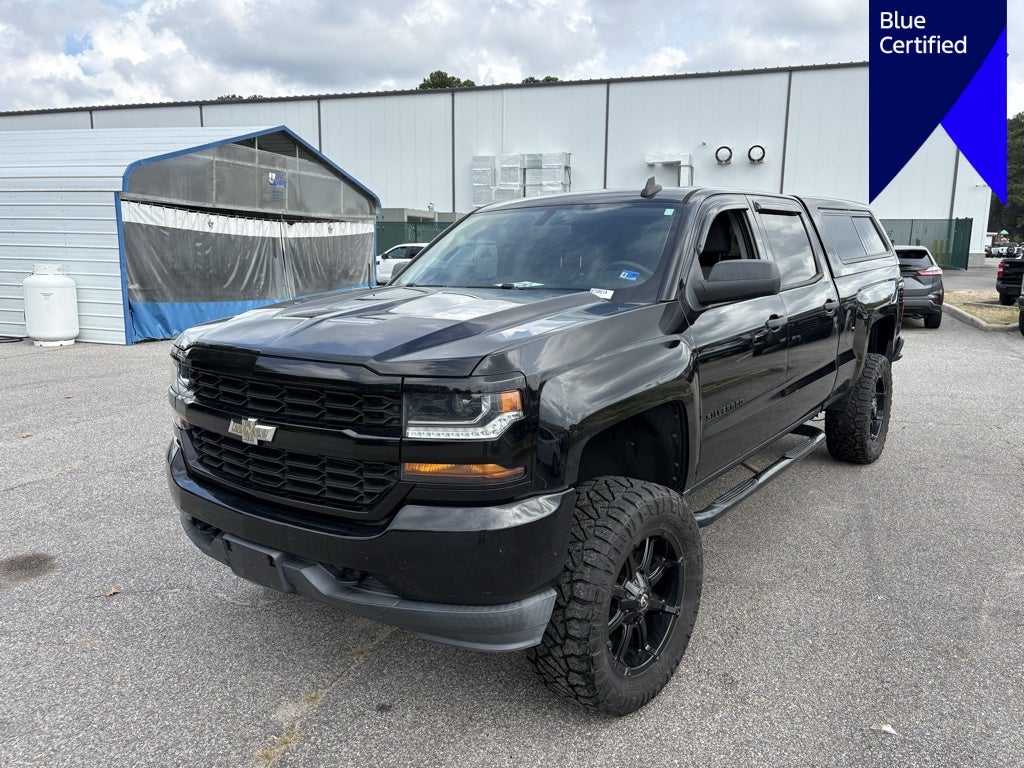

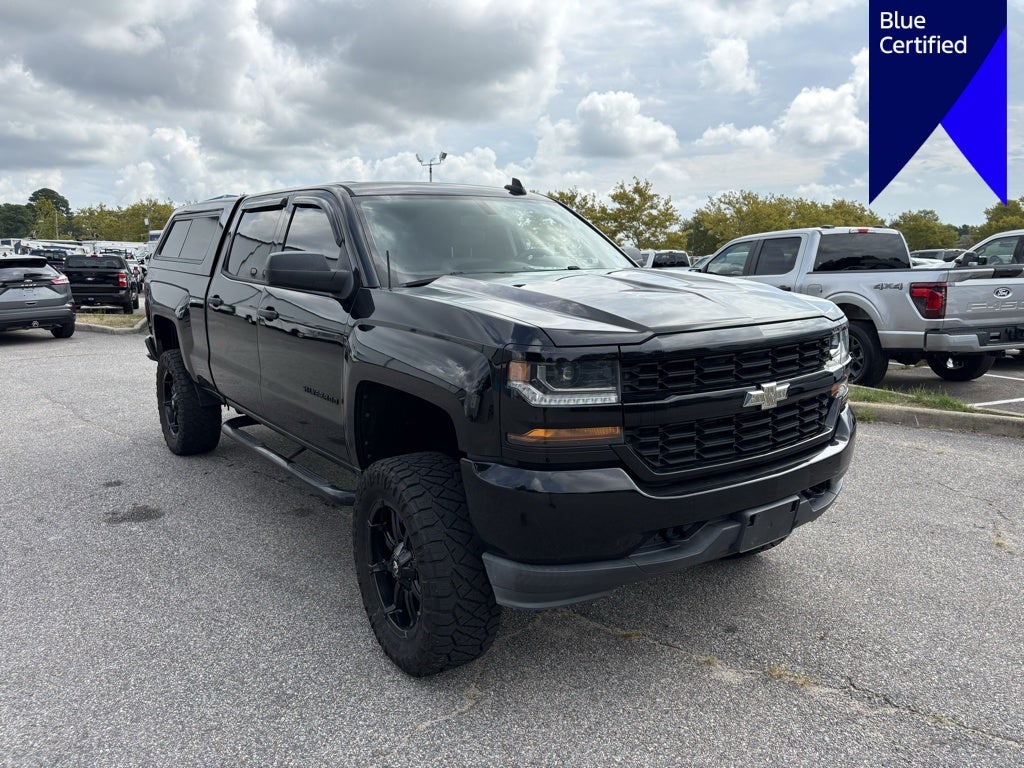

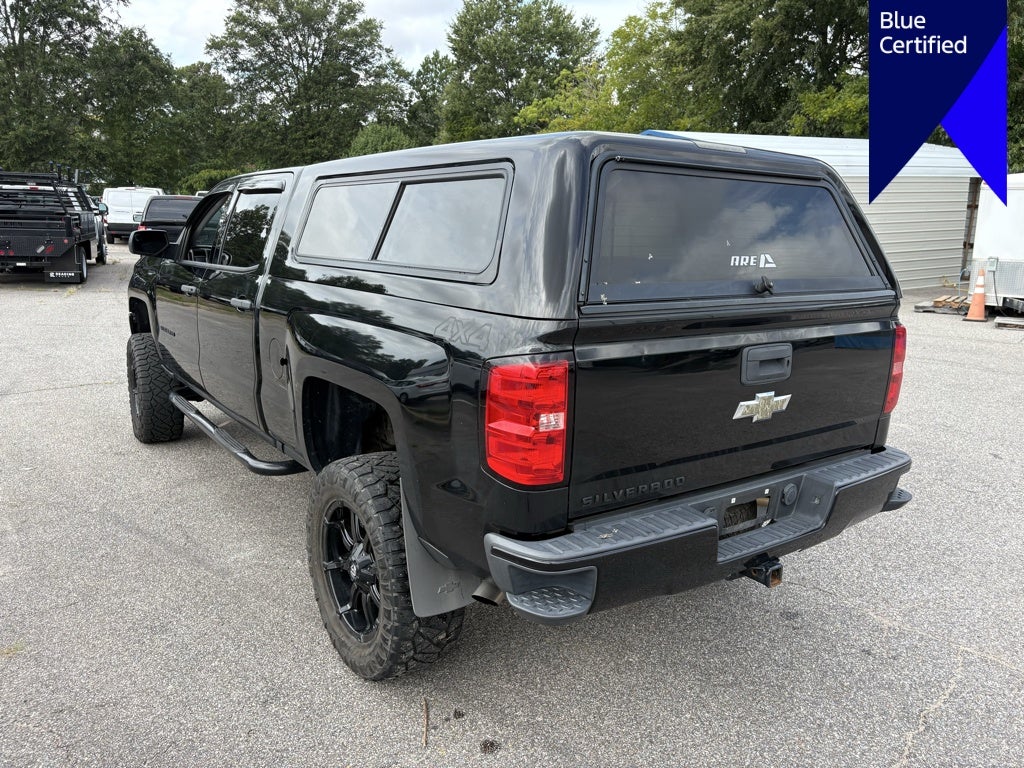

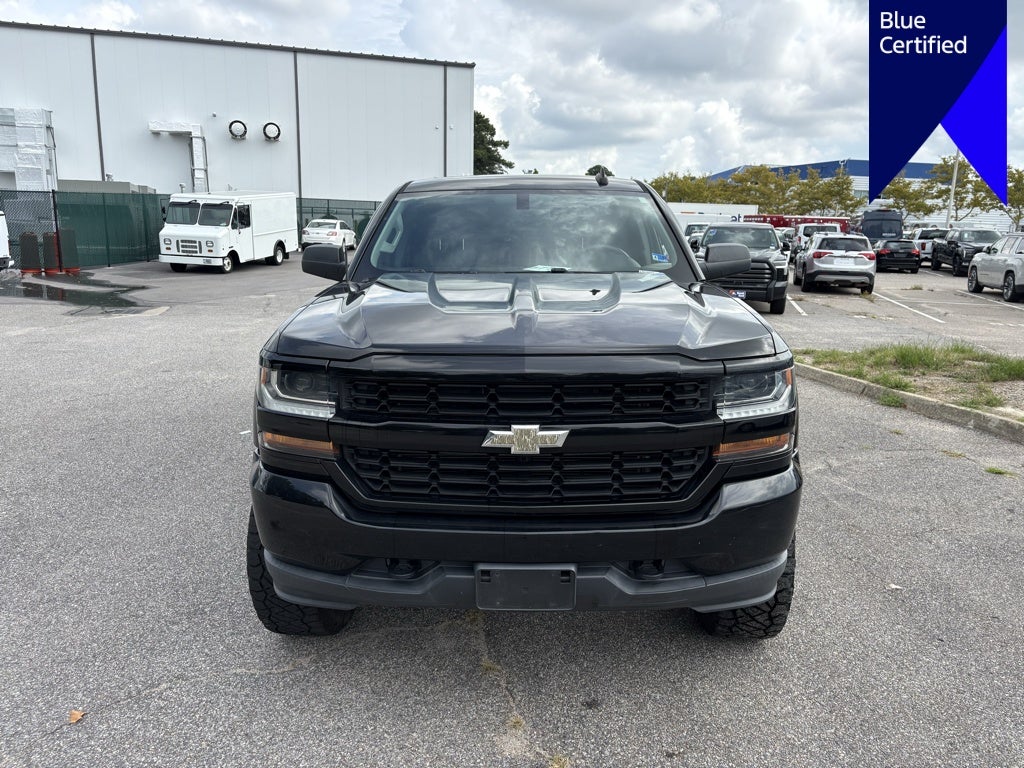

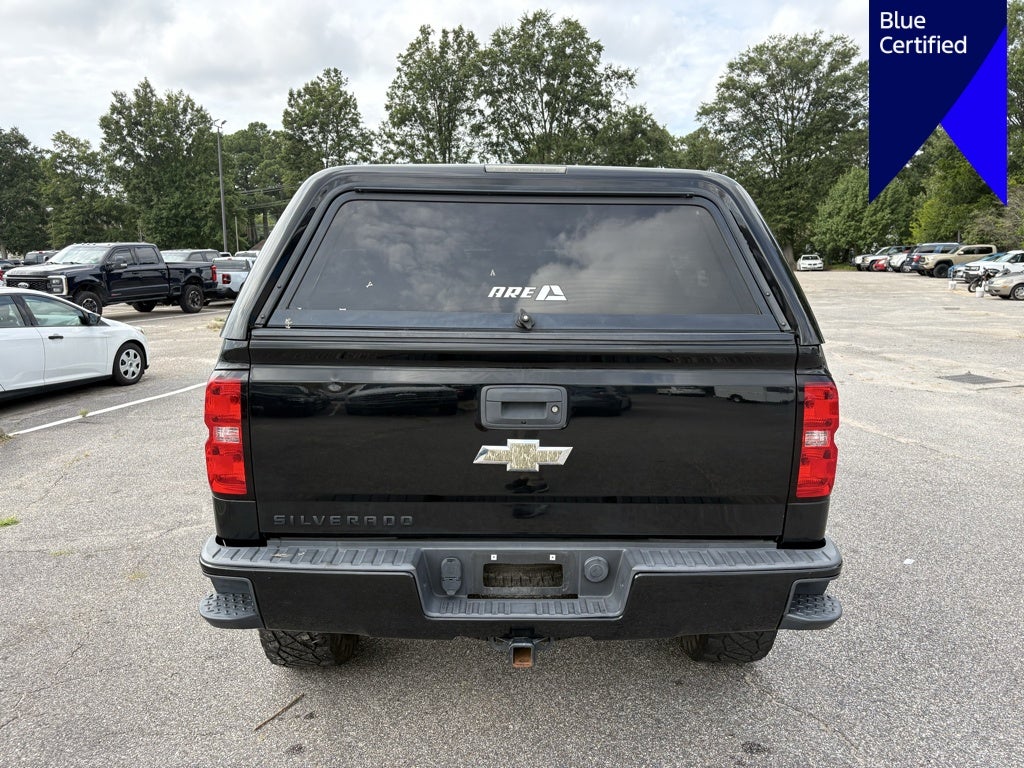

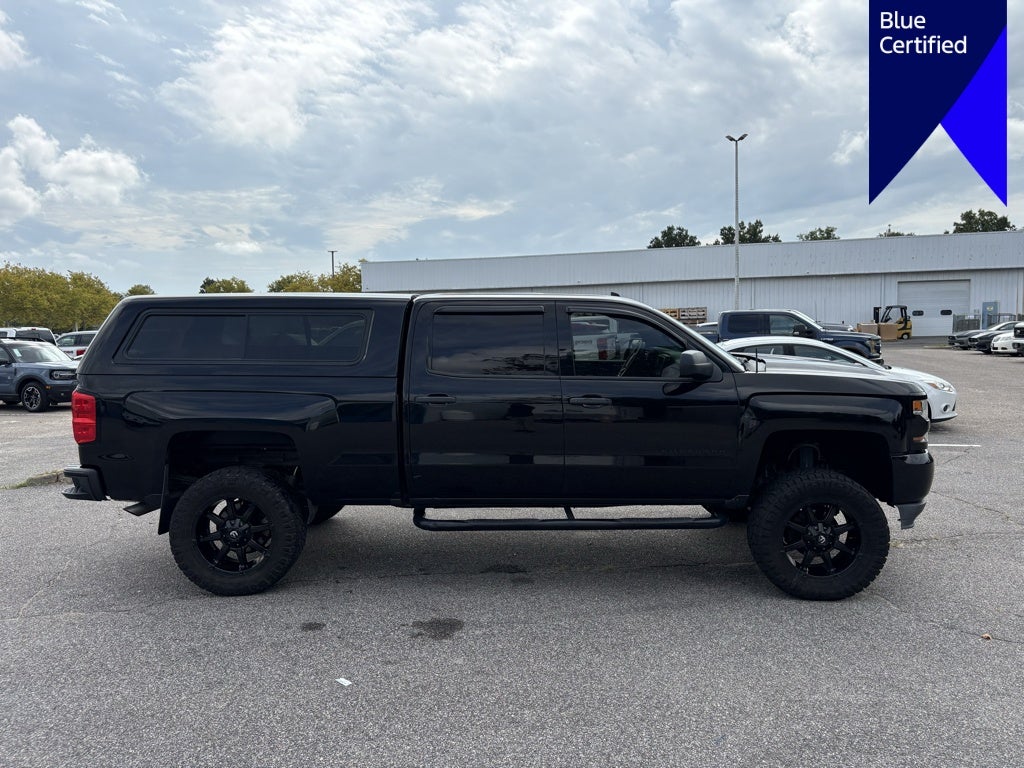

• Vehicle Name: Chevrolet Silverado 1500
• Body Style: Crew Cab Pickup
• Body Code: E63
• Emissions
• Tons/yr of CO2 Emissions @ 15K mi/year: 9.8
